【国家标准(GB)】 信息技术 开放系统互连 管理信息结构 第2部分:管理信息定义

GB/T 17175. 21997

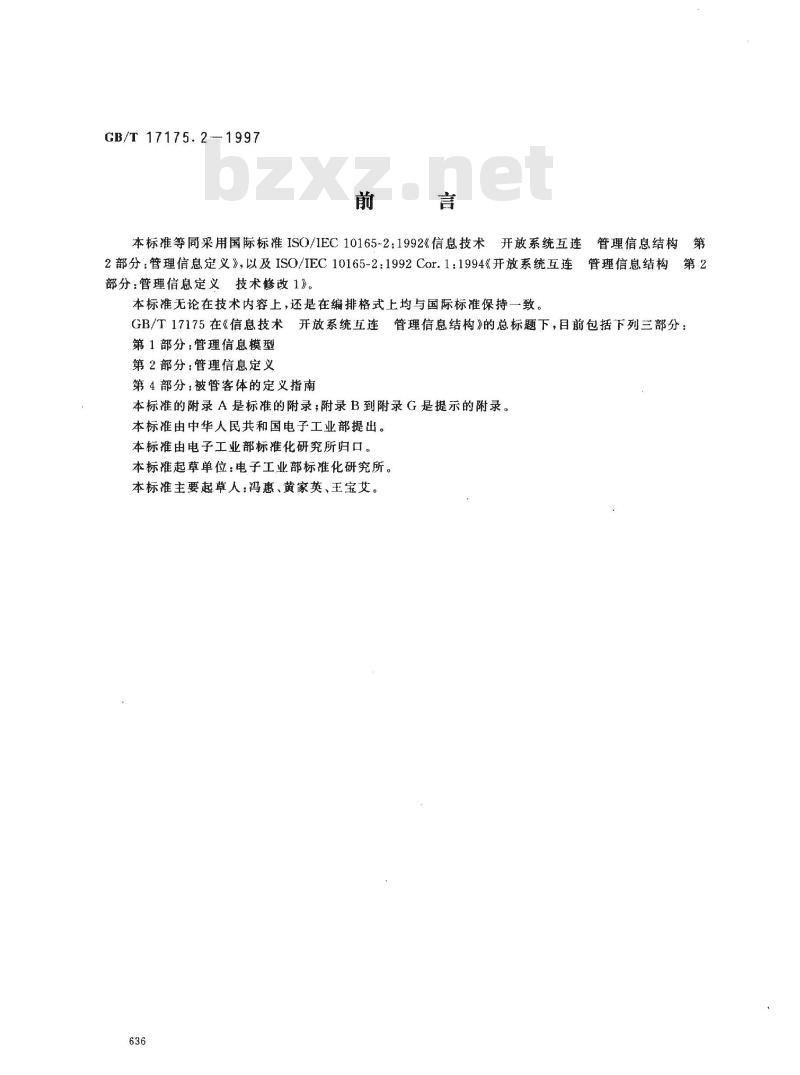

本标准等同采用国际标准ISO/1EC10165-2：1992《信息技术开放系统互连管理信息结构第2部分：管理信息定义》，以及ISO/IEC10165-2：1992Cor.1：1994《开放系统互连管理信息结构第2部分：管理信息定义技术修改1》。本标准无论在技术内容上，还是在编排格式上均与国际标准保持一致。GB/T17175在《信息技术开放系统互连管理信息结构》的总标题下，目前包括下列三部分：第1部分：管理信息模型
第2部分：管理信息定义
第4部分：被管客体的定义指南
本标准的附录A是标准的附录；附录B到附录G是提示的附录。本标准由中华人民共和国电子工业部提出。本标准由电子工业部标准化研究所归口。本标准起草单位：电子工业部标准化研究所。本标准主要起草人：冯惠、黄家英、王宝艾。636
GB/T17175.2--1997

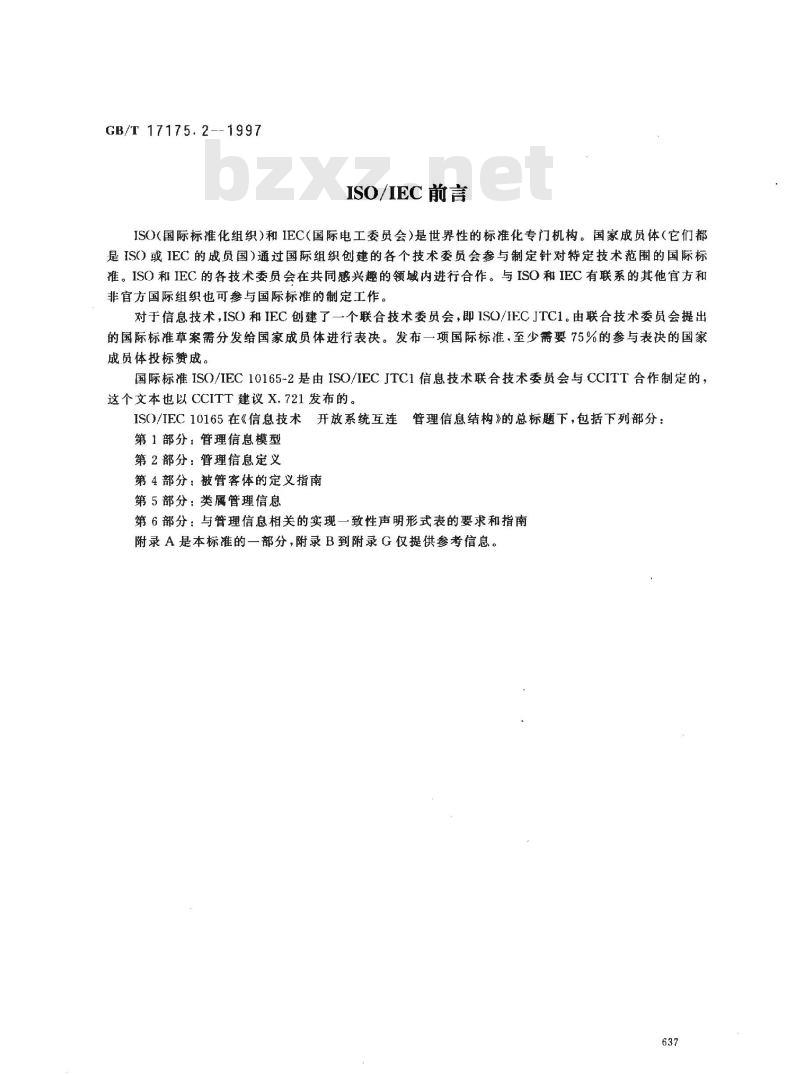

ISO/IEC前言
ISO（国际标准化组织）和IEC（国际电工委员会）是世界性的标准化专门机构。国家成员体（它们都是ISO）或IEC的成员国通过国际组织创建的各个技术委员会参与制定针对特定技术范围的国际标准。ISO和IEC的各技术委员会在共同感兴趣的领域内进行合作。与ISO和IEC有联系的其他官方和非官方国际组织也可参与国际标准的制定工作。对于信息技术，ISO和IEC创建了一个联合技术委员会，即ISO/IECJTC1。由联合技术委员会提出的国际标准草案需分发给国家成员体进行表决。发布一项国际标准，至少需要75%的参与表决的国家成员体投标赞成。
国际标准ISO/IEC10165-2是由ISO/IECJTC1信息技术联合技术委员会与CCITT合作制定的，这个文本也以CCITT建议X.721发布的。ISO/IEC10165在《信息技术开放系统互连管理信息结构》的总标题下，包括下列部分：第1部分：管理信息模型
第2部分：管理信息定义
第4部分：被管客体的定义指南
第5部分：类属管理信息
第6部分：与管理信息相关的实现一致性声明形式表的要求和指南附录A是本标准的一部分，附录B到附录G仅提供参考信息。637
GB/T17175.2-1997

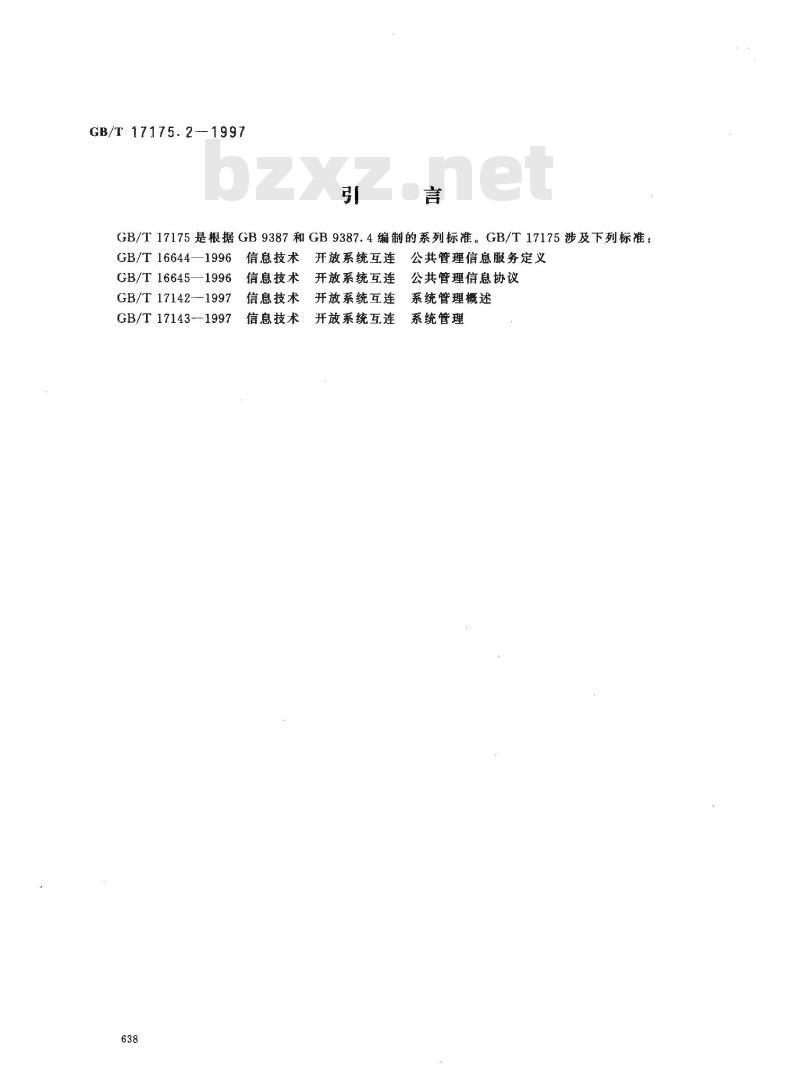

GB/T17175是根据GB9387和GB9387.4编制的系列标准。GB/T17175涉及下列标准：GB/T 16644—1996
GB/T16645—1996
GB/T 17142-1997
GB/T17143--1997
信息技术
信息技术
信息技术
信息技术
开放系统互连
开放系统互连
开放系统互连
开放系统互连
公共管理信息服务定义
公共管理信息协议
系统管理概述
系统管理

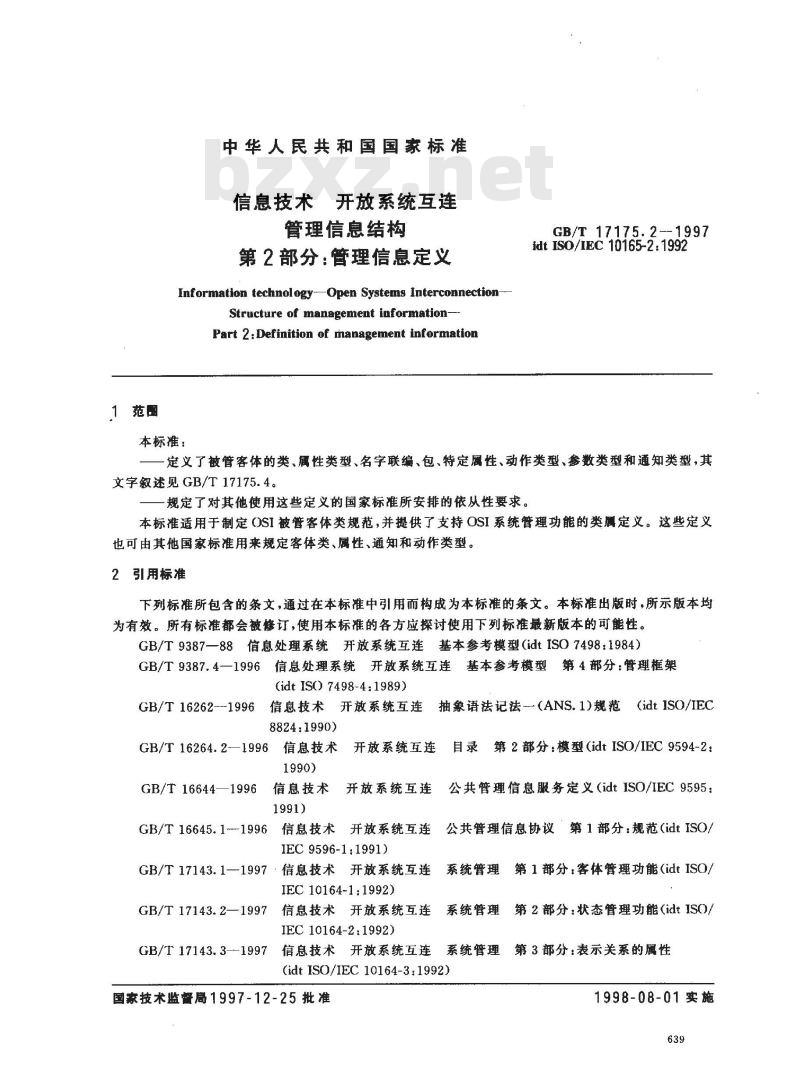

1范围
中华人民共和国国家标准
开放系统互连
信息技术
管理信息结构
第2部分：管理信息定义
Information technology-Open Systems Interconnection-Structure of management information--Part 2: Definition of management information本标准：
GB/T 17175. 2--1997
idt ISO/IEC 10165-2: 1992
定义了被管客体的类、属性类型、名字联编、包、特定属性、动作类型、参数类型和通知类型，其文字叙述见GB/T17175.4。
规定了对其他使用这些定义的国家标准所安排的依从性要求。本标准适用于制定OSI被管客体类规范，并提供了支持OSI系统管理功能的类测定义。这些定义也可由其他国家标准用来规定客体类、属性、通知和动作类型。2 引用标准
下列标准所包含的条文，通过在本标准中引用而构成为本标准的条文。本标准出版时，所示版本均为有效。所有标准都会被修订，使用本标准的各方应探讨使用下列标准最新版本的可能性。GB/T9387—88信息处理系统开放系统互连基本参考模型（idtISO7498：1984）GB/T9387.4一1996信息处理系统开放系统互连基本参考模型第4部分：管理框架(idt ISO) 7498-4 :1989)
GB/T16262-1996信息技术开放系统互连抽象语法记法--（ANS.1)规范(idt JSO/IEC
8824:1990)
GB/T16264.2—1996信息技术开放系统互连目录第2部分：模型（idtISO/IEC9594-2：1990)
GB/T 16644-
—1996
信息技术
开放系统互连
信息技术开放系统互连
GB/T 16645.1-1996
IEC 9596-1:1991)
GB/T17143.1—1997·信息技术开放系统互连IEC 10164-1:1992)
公共管理信息服务定义（idtISO/IEC9595：公共管理信息协议第1部分：规范（idtISO/第1部分：客体管理功能(idtISO/系统管理
系统管理第2部分：状态管理功能(idtISO/GB/T 17143.2—19971
信息技术开放系统互连
IEC 10164-2:1992)
GB/T 17143. 3-19971
信息技术开放系统互连
系统管理第3部分：表示关系的属性(idt ISO/IEC 10164-3:1992)
国家技术监督局1997-12-25批准1998-08-01实施
GB/T 17175.21997
系统管理第4部分：告警报告功能（idt ISO/GB/T 17143.4—1997
信息技术开放系统互连
IEC10164-4:1992)
GB/T 17143.5—1997
信息技术开放系统互连
系统管理第5部分：事件报告管理功能(idt ISO/IEC 10164-5:1992)
系统管理第6部分：日志控制功能（idtISO/GB/T 17143.6—1997
信息技术开放系统互连
IEC 10164-6:1992)
GB/T 17143. 7—1997
：系统管理第7部分：安全告警报告功能信息技术开放系统互连
(idt ISO/IEC 10164-7 : 1992)信息技术开放系统互连管理信息结构第1部分：管理信息模型
GB/T 17175.1—1997
(idtISO/IEC10165-1:1993)
GB/T 17175. 4—1997

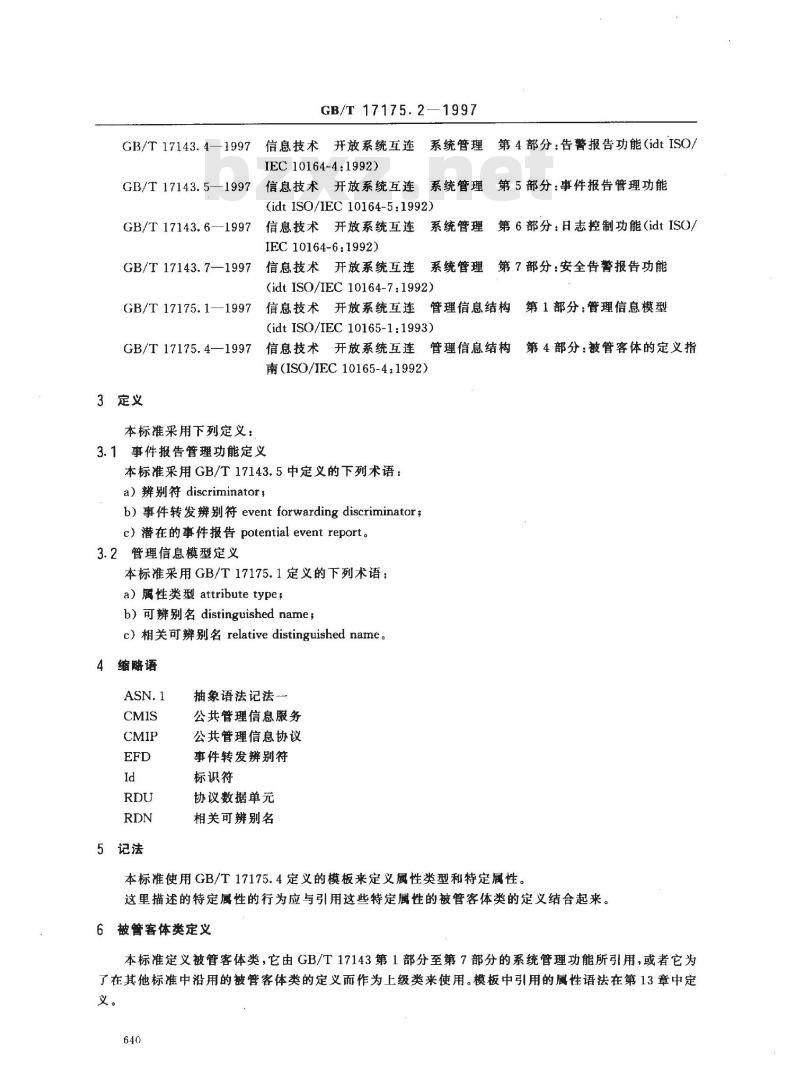

3定义
本标准采用下列定义：
第4部分：被管客体的定义指
信息技术开放系统互连管理信息结构南(ISO/IEC10165-4：1992)
3.1事件报告管理功能定义
本标准采用GB/T17143.5中定义的下列术语：a）辨别符discriminator；
b）事件转发辨别符 event forwarding discriminator；c）潜在的事件报告 potential event report。3.2管理信息模型定义
本标准采用GB/T17175.1定义的下列术语：a属性类型 attribute type;
b）可辨别名distinguished name；c）相关可辨别名 relative distinguished name。4缩略语
5记法
抽象语法记法
公共管理信息服务
公共管理信息协议
事件转发辨辩别符
标识符
协议数据单元
相关可辨别名
本标准使用GB/T17175.4定义的模板来定义属性类型和特定属性这里描述的特定属性的行为应与引用这些特定属性的被管客体类的定义结合起来。6被管客体类定义
本标准定义被管客体类，它由GB/T17143第1部分至第7部分的系统管理功能所引用，或者它为了在其他标准中沿用的被管客体类的定义而作为上级类来使用。模板中引用的属性语法在第13章中定义。
6.1告警记录
GB/T 17175.2—1997
alarmRecord被管客体类用来定义作为收到告警通知或告警报告的结果而存储在日志中的信息。被管客体类的语义，即其属性与行为来源于GB/T17143.4中描述的告警通知。alarmRecord
MANAGED OBJECT CLASS
DERIVED FROM evenitLogRecord ;CHARACTERIZED BY
--The appropriate object identifier values for the eventType attribute,inherited from eventLogRecord--managed object class are communicationAlarm ,qualityofServiceAlarm , processingErrorAlarm +--equipmentAlarm and environmentalAlarm-alarmRecordPackage
BEHAVIOUR
alarmRecordBehaviour
PACKAGE
BEHAVIOUR
DEFINED AS “This managed object is used to represent logged information that resulted fromalarm notifications or event reports\; ;ATTRIBUTES
probableCause
perceivedSeverity
GET，
CONDITIONAL PACKAGES
specificProblemsPackage PACKAGEATTRIBUTES
specificProblems GET;
REGISTERED AS(smi2Package 1) ;PRESENT IF “the Specific problems parameter is present inthe alarm notification or event report corresponding to the instance of alarm record\. backedUpStatusPackage PACKAGEATTRIBUTES
backedUpStatus GET :
REGISTERED AS(smi2Package 2);PRESENT IF \the backedUpStatus attribute has a valueTRUE and the Backed up status parameter is present in the alarm notification or event report cor-responding to the instance of alarm record\,backUpObjectPackage PACKAGE
ATTRIBUTES
backUpObject GET;
REGISTERED AS(smi2Package 3) ;PRESENT IF “Backup object parameter is present in the alarm nati-fication or event report corresponding to the instance of alarm record\,trendIndicationPackage PACKAGEATTRIBUTES
trendIndication GET;
REGISTERED AS ( smi2Package 4); PRESENT IF \the Trend indication parameter is present in thealarm notification or event report corresponding to the instance of alarm record\,thresholdInfoPackage PACKAGEATTRIBUTES
thresholdInfo GET;
GB/T 17175.2-1997
REGISTERED AS( smi2Package 5);PRESENT IF \the value for probableCause attribute is threshold-Crossed\,
stateChangeDefinitionPackage PACKAGEATTRIBUTES
stateChangeDefinition GET;
REGISTERED AS ( smi2Package 6, PRESENT IF \there is a state transition for the states defined inState Management Function,corresponding to the alarm type specified in the alarm record\, monitoredAttributesPackage PACKAGEATTRIBUTES
monitoredAttributes GET;
REGISTERED AS (smi2Package 7) ; PRESENT IF “the monitoredAttributes parameter is present in thealarm notification or event report corresponding to the instance of alarm record\,proposedRepairActionsPackagePACKAGEATTRIBUTES
proposedRepairActions GET
REGISTERED AS( smi2Package 8) ; PRESENT IF “the proposedRepairActions parameter is present inthe alarm notification or event report corresponding to the instance of alarm record\,REGISTERED AS (smi2MObjectClass 11 :6.2属性值改变记录
attribute ValueChangeRecord被管客体类用来定义作为收到属性值改变通知或属性值改变事件报告的结巢存储在日志中的信息。被管客体类的语义，即其属性和行为来源于GB/T17143.1中描述的属性值改变通知。
attribute ValueChangeRecord
MANAGED OBJECT CLASS
DERIVED FROM eventLogRecord ;CHARACTERIZEDBY
--The appropriate object identifier values for the eventType attribute ,inherited from eventLogRecord-managed object class,is attributeValueChangeattributeValueChangeRecordPackageBEHAVIOUR
PACKAGE
attribute ValueChangeRecordBehaviourBEHAVIOUR
DEFINED AS \This managed object is used to represent logged information that resulted fromattribute value change notifications or event reports\; ATTRIBUTES
attributeValueChangeDefinition GET; ; sCONDITIONAL PACKAGES
sourcelndicatorPackage
PRESENT IF \the sourcelndicator parameter is present in theattributeValueChange notification or event report corresponding to the instance of attribute valuechange record\,
attributeldentifierListPackagein the
PRESENT IF \the attributeldentifierList parameter is presentattributeValueChange notification or event report corresponding to the instance of attribute valuc642
change record\;
GB/T17175.2.1997
REGISTERED AS (Smi2MObjectClass 2);6.3辨别符
discriminator 被管客体类用来定义控制管理服务的准则。被管客体类的语义，即其属性和行为在GB/T17143.5中描述。
discriminator
MANAGED OBJECT CLASS
DERIVED FROM top;
CHARACTERIZED BY
discriminatorPackage
BEHAVIOUR
PACKAGE
discriminatorBehaviour
BEHAVIOUR
DEFINED AS “This managed object is used to represent the criteria for controlling managementservices.\;
ATTRIBUTES
discriminatorld GET,
discriminatorConstruct
REPLACE-WITH-DEFAULT
DEFAULT VALUE Attribute-ASN1Module. defaultDiscriminatorConstructPLACE,
administrativeState
operationalState GET ;
NOTIFICA TIONS
stateChange,
attribute ValueChange,
objectCreation，
objectDeletion ;;
GET-REPLACE,
--上述事件在GB/T17143.1、GB/T17143.2中定义。CONDITIONAL PACKAGES
GET-RE-
availabilityStatusPackage PRESENT IF \any of the scheduling packages, (duration, weeklyscheduling,external)are present\,duration
PRESENT IF\the discriminator function is scheduled to start at a specified time and stopat either a specified time or function continuously\,dailyScheduling
PRESENT IF\both the weekly scheduling package and external schedulerpackages are not present in an instance and daily scheduling is supported by that instance\,weeklyScheduling PRESENT IF “both the daily scheduling package and external scheduler pack-ages are not present in an instance and weekly scheduling is supported by that instance\,externalSchedulerPRESENT IF “both the daily scheduling package and weekly scheduling pack-ages are not present in an instance and external scheduling is supported by that instance\;--关于这种被管客体类的描述见GB/T17143.5。REGISTERED AS (smi2MObjectClass 31;643
6.4事件转发辨别符
GB/T 17175.2—1997
eventForwardingDiscriminator被管客体类用来定义在事件报告转发给特定目的地之前潜在的事件报告应满足的条件。该被管客体类是辩别符被管客体类的子类。受管理类的语义，即其属性、管理操作与行为在GB/T17143.5中描述。
eventFor wardingDiscriminatorDERIVED FROM discriminator;
CHARACTERIZED BY
MANAGED OBJECT CLASS
--The value for the administrative state if not specified at initiation defaults to the value unlocked.efdPackage
PACKAGE
BEHAVIOUR
eventForwardingDiscriminatorBehaviourBEHAVIOURDEFINED AS \This managed object is used to represent the criteria that shall be satisfied by po-tential event reports before the event report is forwarded to a particular destination. \, ;ATTRIBUTES
destination
GET-REPLACE;1
--辨别符构造属性是使用GB/T17143.5中定义的--潜在事件报告客体的属性来定义。CONDITIONAL PACKAGES
backUpDestinationListPackage PACKAGEATTRIBUTES
activeDestination GET,
backUpDestinationList GET-REPLACE;REGISTERED AS( srni2Package 9) ; PRESENT IF\the event forwarding discriminator is re-quired to provide a backup for the destination\,modePackage PACKAGE
ATTRIBUTES
confirmedMode GET;
REGISTERED AS ( smi2Package 1O);PRESENT IF “the event forwarding discriminator per-mits mode for reporting events to be specified by the managing system\;REGISTERED AS (smi2MObjectClass 4/;6.5事件日志记录
eventLogRecord被管客体类用来定义作为收到通知或事件报告的结果而存储在日志中的信息。这是导出特定事件类型记录的上级类。eventLogRecord MANAGED OBJECT CLASSDERIVED FROM logRecord ;
CHARACTERIZED BY
eventLogRecordPackage PACKAGEBEHAVIOUR
eventLogRecordBehaviour
BEHA VIOUR
DEFINED AS \This managed object represents the information stored in the log as a result of re-ceiving notifications or incoming event reports. \; ;ATTRIBUTES
managedObjectClass
managedObject Instance
eventType
CONDITIONALPACKAGES
eventTimePackage
ATTRIRUTES
eventTime
—1997
GB/T 17175.2
GET，
PACKAGE
REGISTERED ASIsni2Package 11);PRESENT IF \the event time parameter was present inthe received event report\,notificationIdentifierPackagePRESENT IF “the notification Identifier parameter is presentin the notification or event report corresponding to the instance of an event record or an instanceof its subclasses\,
correlatedNotificationsPackagePRESENT IF\the correlatedNotifications parameter is present in the notification or event report corresponding to the instance of an event record or an in-stance of its subclasses\,
additionalTextPackage
PRESENT IF\the Additional text parameter is present in thenotification or report corresponding to the instance of event record or an instance of itssubclasses\,
additionalInformationPackagePRESENT IF “the Additional information parameter is present in the notification or report coresponding to the instance of event record or an instance of itssubclasses\；
REGISTEREDAS (smi2MObjectClass 5);6.6日志
L.og被管客体类用来定义在开放系统中控制日志信息的准则。被管管体类的语义，即其属性与行为在GB/T17143.6中描述。
MANAGED OBJECT CLASS
DERIVED FROM top;www.bzxz.net
CHARACTERIZED BY
--关于这种被管客体类的描述见GB/T17143.6。. logPackage
PACKAGE
BEHAVIOUR
logBehaviour
BEHAVIOUR
DEFINEDAS“这种被管客体用于存储人事件报告和本地系统通知。详情见GB/T17143.6中定义”；
ATTRIBUTES
logId GET,
discriminatorConstruct
administrativeState
operationalState GET,
GET-REPLACE,
GET-REPI.ACE,
availabilityStatus PERMITTED VALUES Attribute-ASN1Module. LogAvailabilityREQUIREDVALUES Attribute-ASNIModule.Unscheduled-645
GB/T 17175.2-1997
LogAvailability GET,
logFullAction GET-REPLACE;
NOTIFICATIONS
objectCreation,
objectDeletion,
attribute ValueChange,
stateChange，
processingErrorAlarm; + :
CONDITIONAL PACKAGES
finiteLogSizePackage PACKAGEATTRIBUTES
maxLogSize GET-REPLACE,
GET，
currentLogSize
numberOfRecords GET;
REGISTERED AS(smi2Package 12);PRESENTIF\an instance supports it\,logAlarmPackage PACKAGE
ATTRIBUTES
capacityAlarmThreshold GET-REPLACE ADD-REMOVE;REGISTERED AS(smi2Package 13)；PRESENTIF\a log is of finite size and haltslogging when the availability status has the log full value. \ ,availabilityStatusPackage
PRESENT IF \ any of the scheduling packages,(dura-tion, weekly scheduling,external)are present. The presence of this package makes avail-able the off-duty value of the available status attribute to the object. \ ,duration
PRESENT IF \the logging function is scheduled to start at a speci-fied time and stop at either a specified time of function continuously. \dailyScheduling
PRESENT IF \both the weekly scheduling package and ex-ternal scheduler packages are not present in an instance and daily scheduling is support-ed by that instance. \
weeklyScheduling
PRESENT IF \both the daily scheduling package and ex-ternal scheduler packages are not present in an instance and weekly scheduling is sup-ported by that instance. \,externalScheduler
PRESENT IF \ both the daily scheduling package andweekly scheduling packages are not present in an instance and external scheduling issupported by that instance. \;REGISTERED AS (smi2MObjectClass 6};6.7日志记录
LogRecord被管客体类用来定义包括在日志被管客体中的记录。被管客体类的语义，即其属性与行为在GB/T17143.6中描述。
logRecord
MANAGED OBJECT CLASS
DERIVED FROM toP:
CHARACTERIZED BY
logRecordPackagePACKAGE
BEHAVIOUR
logRecordBehaviour
GB/T 17175.2—1997
BEHAVIOUR
DEFINED AS \This managed object represents the information stored in the logs\; ATTRIBUTES
logRecordId
loggingTime
GET，
REGISTERED AS (smi2MObjectClass 7);6.8客体创建记录
objectCreationRecord被管客体类用来定义作为收到客体创建通知或客体创建事件报告的结果而存储在日志中的信息。被管客体类的语义，即其属性与行为来源于GB/T17143.1中描述的客体创建通知。
objectCreationRecord
MANAGED OBJECT CLASS
DERIVED FROM eventLogRecord;CHARACTERIZED BY
--The appropriate object identifier value for the eventType attribute ,inherited from eventLogRecord--managed object class ,is objectCreationobjectCreationRecordPackage
BEHAVIOUR
PACKAGE
objectCreationRecordBehaviourBEHAVIOUR
DEFINED AS\ This managed object is used to represent logged information that resultedfrom object creation notifications or event reports\ +3 CONDITIONAL PACKAGES
sourcelndicatorPackage PRESENT IF \the sourceIndicator parameter is present in the ob-ject crcation notification or event report corresponding to the instance of object creationrecord\，
attributeListPackage
PRESENT IF \ the attributeList parameter is present in the objectcreation notification or event report corresponding to the instance of object creation record\ ;REGISTERED AS(smi2MObjectClass 8);6.9客体删除记录
objectDeletionRecord被管客体类用来定义作为收到客体删除通知或客体删除事件报告的结果而存储在日志中的信息。被管客体类语义，即其属性与行为来源于GB/T17143.1所描述的客体删除通知。
objectDeletionRecord
MANAGED OBJECT CLASS
DERIVED FROM eventLogRecord;CHARACTERIZED BY
--The appropriate object identifier value for the eventType attribute,inherited from eventLogRecord--managed object class ,is objectDeletionobjectDeletionRecordPackage
BEHAVIOUR
PACKAGE
objectDeletionRecordBehaviourBEHAVIOUR
