【YD通讯标准】 2GHz TD-SCDMA/WCDMA 数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求 第2部分:基于 CORBA 技术的信息模型设计
- YD/T2333.2-2011
- 现行
标准号:
YD/T 2333.2-2011
标准名称:
2GHz TD-SCDMA/WCDMA 数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求 第2部分:基于 CORBA 技术的信息模型设计
标准类别:
通信行业标准(YD)
标准状态:
现行出版语种:
简体中文下载格式:
.zip .pdf下载大小:
33.17 MB

点击下载
标准简介:
YD/T 2333.2-2011.2GHz TD-SCDMA/WCDMA digital cell mobile communications network HSPA+ management technical specification part 2: CORBA based information model design.
1范围
YD/T 2333.2规定了采用TD SCDMA/WCDMA Release 7/8 HSPA+接入技术的2GHz数字蜂窝移动通信网的网络管理接口的CORBA/IDL定义。
YD/T 2333.2适用于对采用TD-SCDMA/WCDMA Release 7/8 HSPA+接入技术的2GHz数字蜂窝移动通信网的网络管理。
2规范性引用文件
下列文件对于本文件的应用是必不可少的。凡是注日期的引用文件,仅所注日期的版本适用于本文件。凡是不注日期的引用文件,其最新版本(包括所有的修改单)适用于本文件。
YD/T 1586.1-2007 2GHz WCDMA数字蜂窝移动通信网网络管理技术要求(第一阶段)第1部分:配置网络资源模型
YD/T 1584.3-2007 2GHz数字蜂窝移动通信网网络管理通用技术要求第3部分:接口分析
YD/T 1585.1-2007 2GHz TD-SCDMA数字蜂窝移动通信网网络管理技术要求(第二阶段)第1部分:网络资源模型
YD/T 1585.2-2007 2GHz TD-SCDMA数字蜂窝移动通信网网络管理技术要求(第二阶段)第2部分:性能测量数据
YD/T 1586.3-2006 2GHz WCDMA数字蜂窝移动通信网网络管理技术要求(第一阶段)第3部分:基于CORBA技术的网络资源模型设计

部分标准内容:

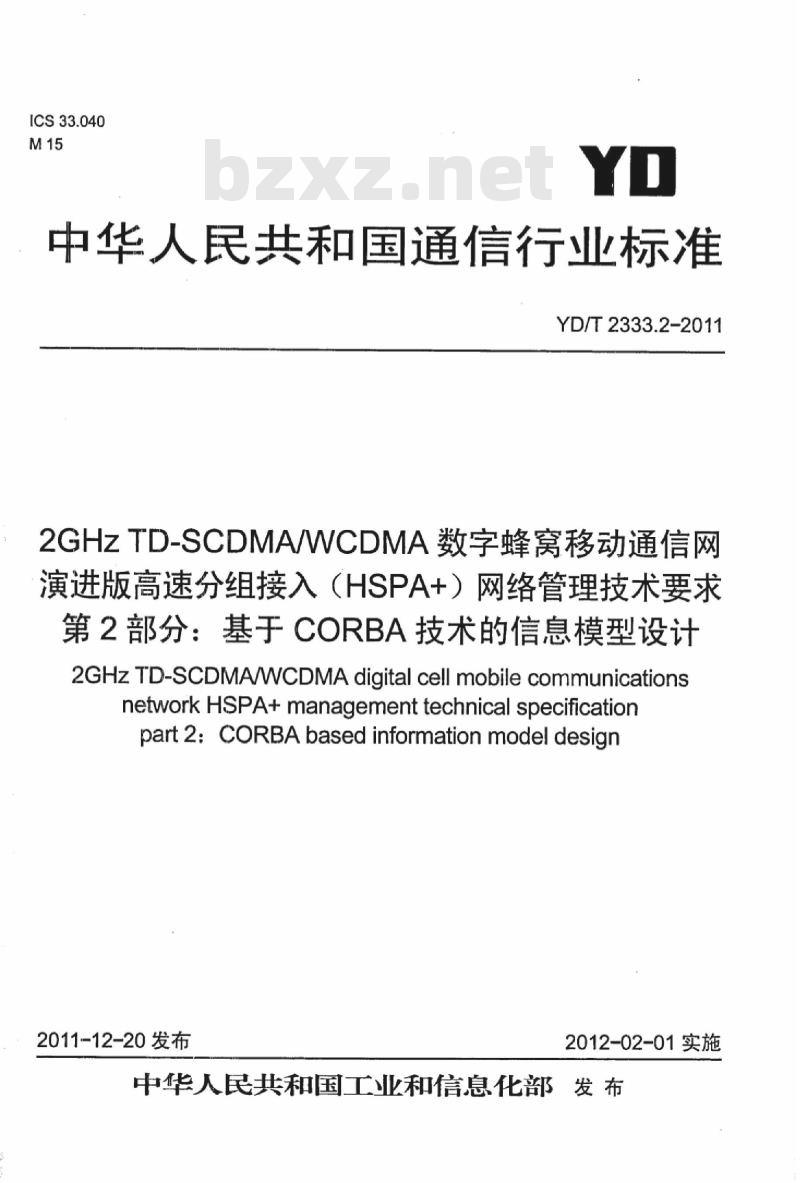

中华人民共和国通信行业标准
YD/T2333.2-2011
2GHzTD-SCDMAWCDMA数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求第2部分:基于CORBA技术的信息模型设计2GHz TD-SCDMAWCDMAdigital cell mobile communicationsnetwork HSPA+ management technical specificationpart 2: CORBA based information model design2011-12-20发布
2012-02-01实施
中华人民共和国工业和信息化部发布前

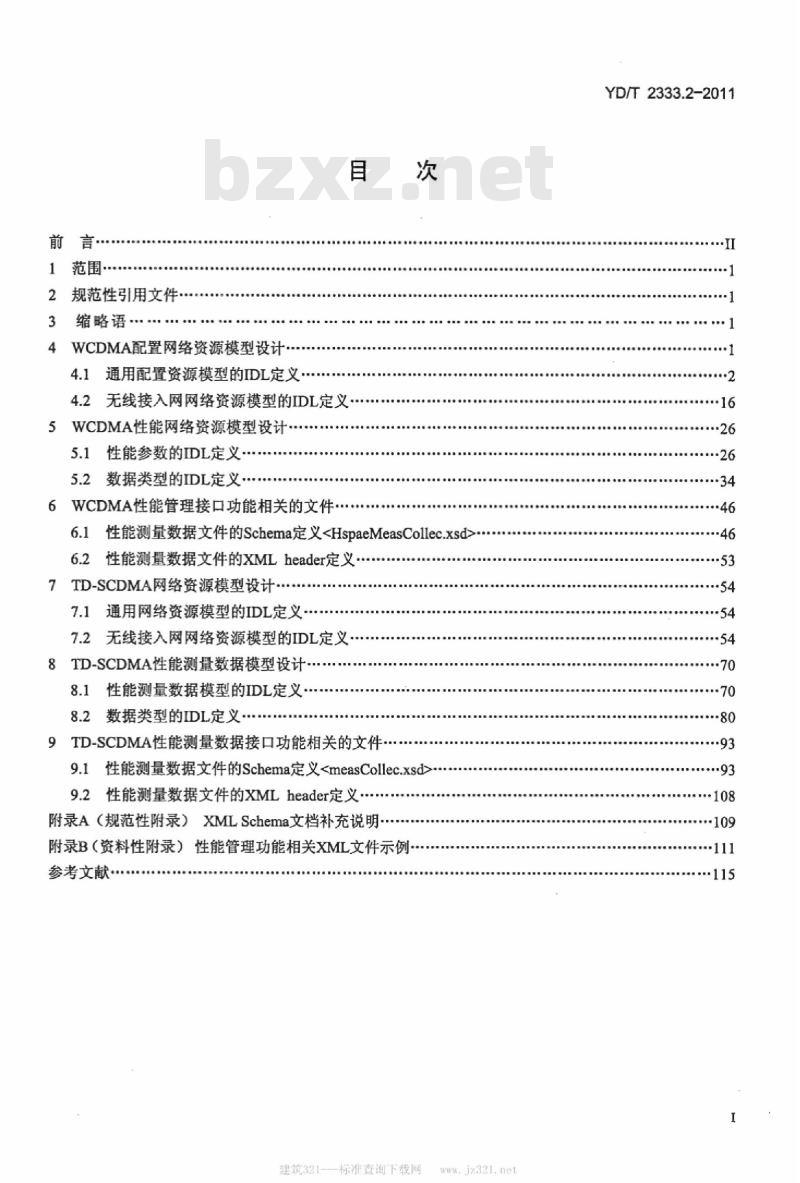

范围·
2规范性引用文件
缩略语
4WCDMA配置网络资源模型设计:4.1通用配置资源模型的IDL定义·目
4.2无线接入网网络资源模型的IDL定义·5WCDMA性能网络资源模型设计
5.1性能参数的IDL定义·
5.2数据类型的IDL定义。
6WCDMA性能管理接口功能相关的文件·次
6.1性能测量数据文件的Schema定义
7.1通用网络资源模型的IDL定义·7.2无线接入网网络资源模型的IDL定义8TD-SCDMA性能测量数据模型设计8.1性能测量数据模型的IDL定义·8.2数据类型的IDL定义·
9TD-SCDMA性能测量数据接口功能相关的文件9.1性能测量数据文件的Schema定义
建筑321---标准查询下载网
YD/T2333.2-2011
YD/T2333.2-2011

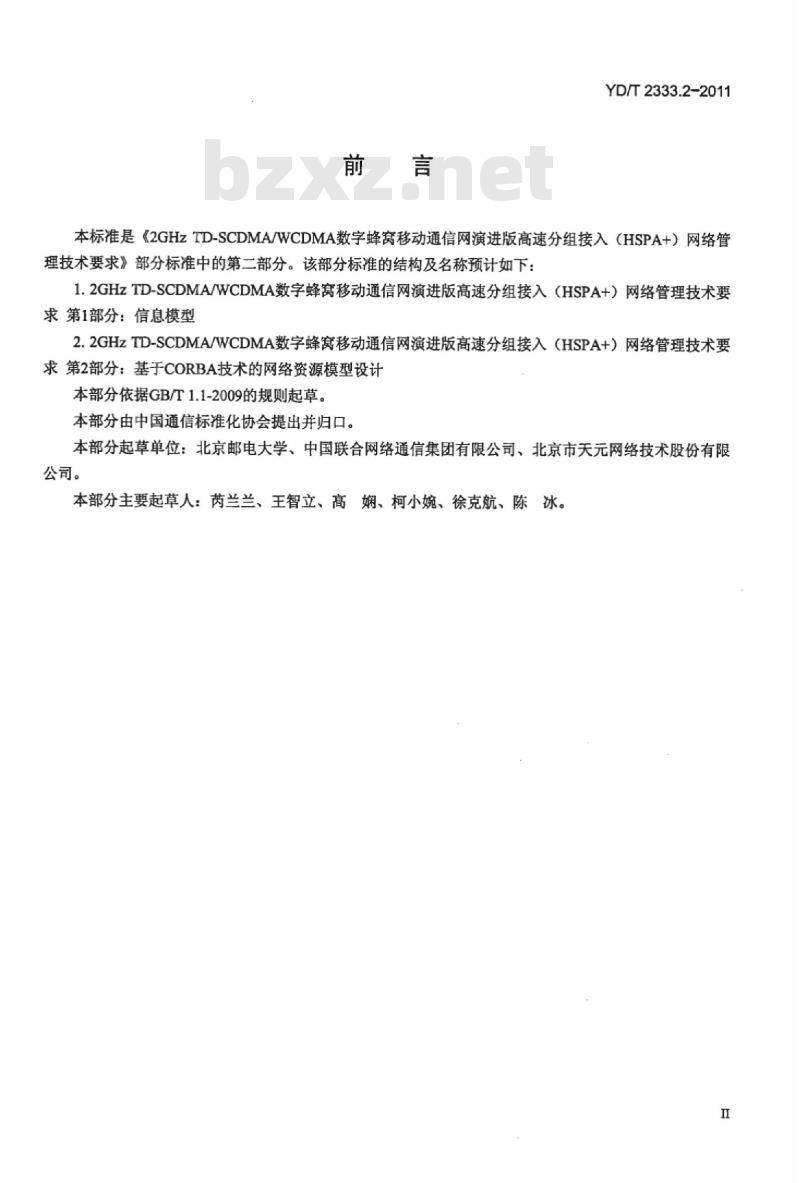

本标准是《2GHzTD-SCDMA/WCDMA数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求》部分标准中的第二部分。该部分标准的结构及名称预计如下:1.2GHzTD-SCDMA/WCDMA数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求第1部分:信息模型下载标准就来标准下载网
2.2GHzTD-SCDMA/WCDMA数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求第2部分:基于CORBA技术的网络资源模型设计本部分依据GB/T1.1-2009的规则起草。本部分由中国通信标准化协会提出并归口。本部分起草单位:北京邮电大学、中国联合网络通信集团有限公司、北京市天元网络技术股份有限公司。
本部分主要起草人:芮兰兰、王智立、高娴、柯小婉、徐克航、陈冰。II

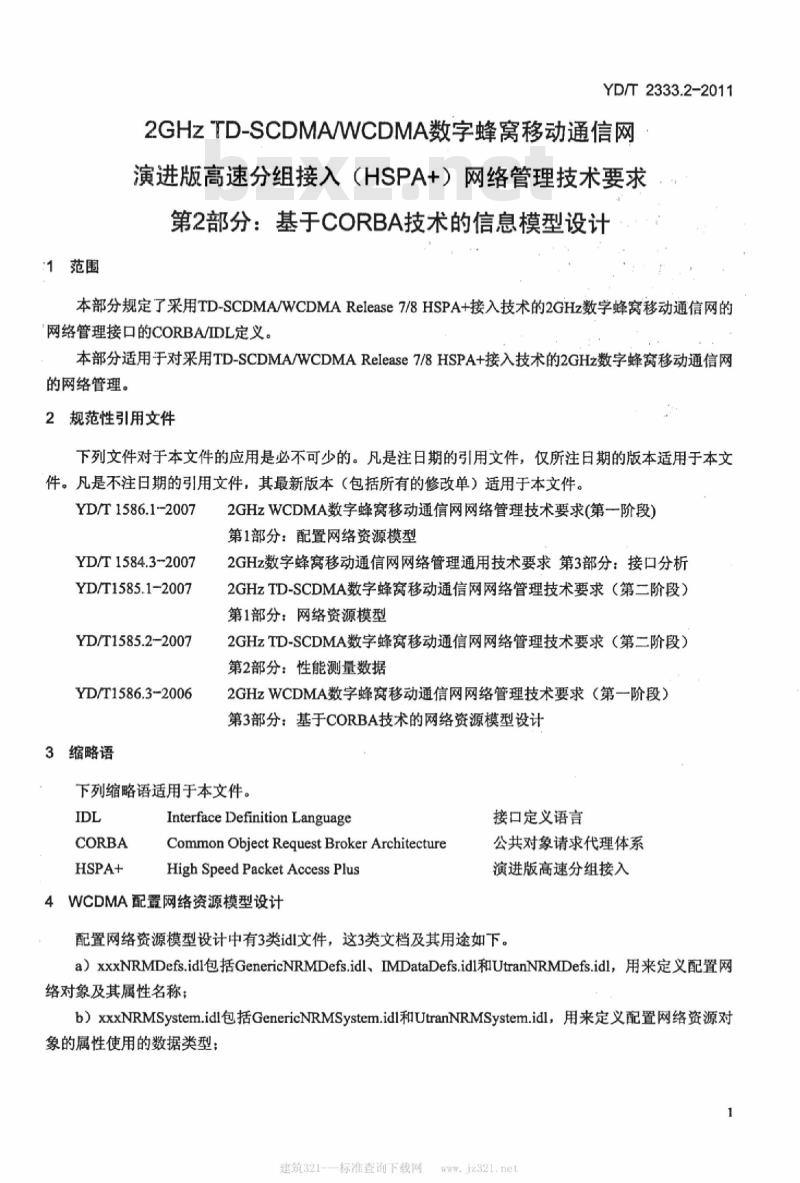

1范围
YD/T2333.2-2011
2GHZTD-SCDMAWCDMA数字蜂窝移动通信网演进版高速分组接入(HSPA+)网络管理技术要求第2部分:基于CORBA技术的信息模型设计本部分规定了采用TD-SCDMA/WCDMARelease7/8HSPA+接入技术的2GHz数字蜂窝移动通信网的网络管理接口的CORBA/IDL定义。本部分适用于对采用TD-SCDMA/WCDMARelease7/8HSPA+接入技术的2GHz数字蜂窝移动通信网的网络管理。
2规范性引用文件
下列文件对于本文件的应用是必不可少的。凡是注日期的引用文件,仅所注日期的版本适用于本文件。凡是不注日期的引用文件,其最新版本(包括所有的修改单)适用于本文件。YD/T1586.1-2007
YD/T1584.3-2007
YD/T1585.1-2007
YD/T1585.2-2007
YD/T1586.3-2006
3缩略语
2GHzWCDMA数字蜂窝移动通信网网络管理技术要求(第一阶段)第1部分:配置网络资源模型
2GHz数字蜂窝移动通信网网络管理通用技术要求第3部分:接口分析2GHzTD-SCDMA数字蜂窝移动通信网网络管理技术要求(第二阶段)第1部分:网络资源模型
2GHzTD-SCDMA数字蜂窝移动通信网网络管理技术要求(第二阶段)第2部分:性能测量数据
2GHzWCDMA数字蜂窝移动通信网网络管理技术要求(第一阶段)第3部分:基于CORBA技术的网络资源模型设计下列缩略语适用于本文件。
Interface Definition LanguageCommon Object Request Broker ArchitectureHighSpeedPacketAccessPlus
4WCDMA配置网络资源模型设计
接口定义语言
公共对象请求代理体系
演进版高速分组接入
配置网络资源模型设计中有3类idl文件,这3类文档及其用途如下。a)xxxNRMDefs.idl包括GenericNRMDefs.idl、IMDataDefs.idl和UtranNRMDefs.idl,用来定义配置网络对象及其属性名称;
b)xxxNRMSystem.idl包括GenericNRMSystem.idl和UtranNRMSystem.idl,用来定义配置网络资源对象的属性使用的数据类型;
建筑321---标准查询下载网
www-jz321.net
YD/T2333.2-2011

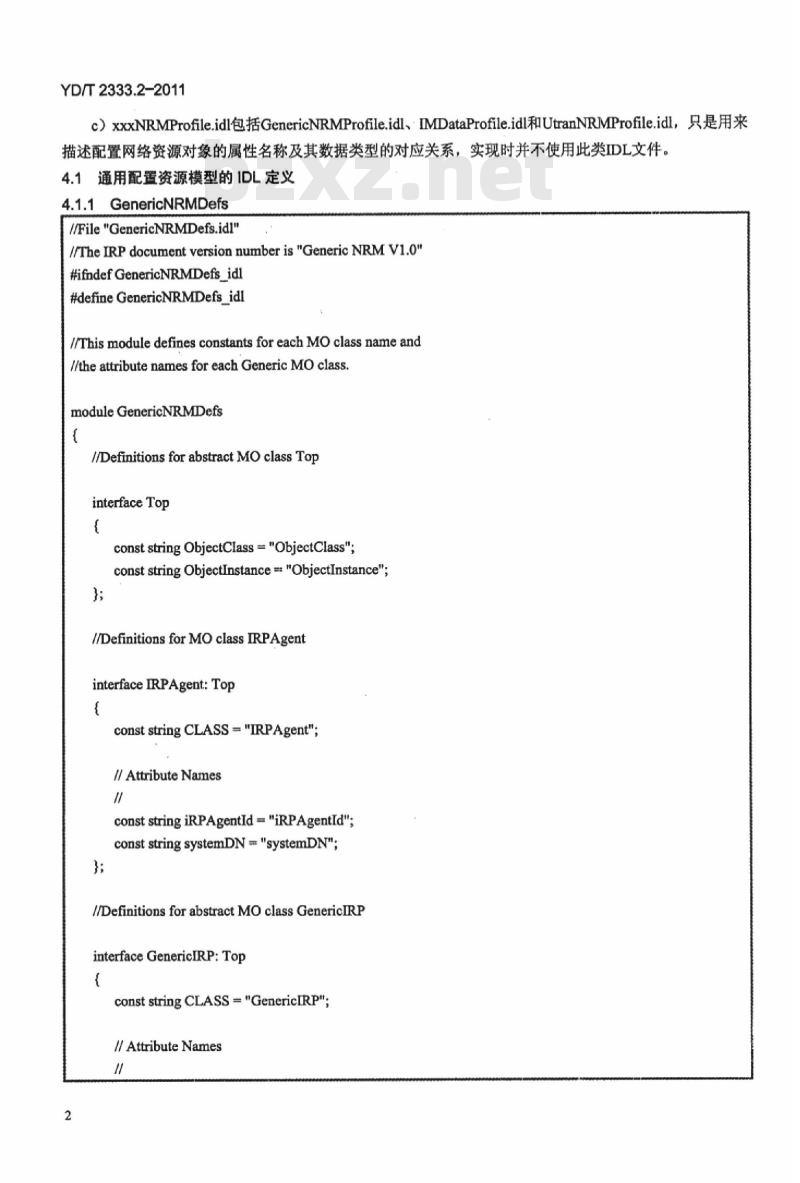

c)xxxNRMProfile.idl包括GenericNRMProfile.idl、IMDataProfile.idl和UtranNRMProfile.idl,只是用来描述配置网络资源对象的属性名称及其数据类型的对应关系,实现时并不使用此类IDL文件。4.1通用配置资源模型的IDL定义4.1.1GenericNRMDefs
/File\GenericNRMDefs.id!\
I/TheIRPdocumentversionnumberis\GenericNRMV1.o\#ifndef GenericNRMDefsidl
#define GenericNRMDefs_idl
//Thismoduledefines constants foreachMo class nameandI/the attribute names for each Generic MO class.module GenericNRMDefs
//Definitions for abstract MO class Topinterface Top
const string ObjectClass =\ObjectClass\;conststring ObjectInstance\ObjectInstance\;;
//Definitions forMO classIRPAgentinterface IRPAgent: Top
const string CLASS -\IRPAgent\;Il Attribute Names
const string iRPAgentId=\iRPAgentId\;const string systemDN \systemDN\:3;
//Definitions for abstract MO class GenericIRPinterfaceGenericIRP:Top
const string CLASS =\GenericIRP\;// Attribute Names
const string iRPId =\iRPId\;//Definitions for MO class SubNetworkinterface SubNetwork: Top
const string CLASS - \SubNetwork\;//AttributeNames
const string subNetworkId -\subNetworkId\;const string dnPrefix \dnPrefix\;const string userLabel - \userLabel\:const string setOfMcc =\setofMcc\;const string userDefinedNetworkType = \userDefinedNetworkType\;;
//Definitions for MO class MeContextinterface MeContext: Top
const string CLASS --\MeContext\;// Attribute Names
const string meContextId -\meContextId\;const string dnPrefix = \dnPrefix\;;
/Definitions for MO class ManagementNodeinterface ManagementNode: Topconst string CLASS =\ManagementNode\;I Attribute Names
const string managementNodeld - \managementNodeld\const string managedElements =\managedElements\;const string userLabel - \userLabel\;const string userDefinedState -\userDefinedState\;const string swVersion -\swVersion\;建筑321---标准查询下载网
www-jz321.net
YD/T2333.2-2011
YD/T2333.2-2011
const string locationName=\locationName\;const string vendorName - \vendorName\;//Definitions for MO class ManagedElementinterface ManagedElement: Topconst string CLASS =\ManagedElement\;Il Attribute Names
const string managedElementId -- \managedElementId\;const string dnPrefix \dnPrefix\;const string userLabel =\userLabel\;const string vendorName \vendorName\;const string locationName =\locationName\;const string managedElementType -- \managedElementType\;const string managedBy-\managedBy\;const string userDefinedState =\userDefinedState\;const string swVersion =\swVersion\;3
//Definitions for abstract MO class ManagedFunctioninterface ManagedFunction : Topconst string CLASS -\ManagedFunction\;llAttributeNames
const string userLabel - \userLabel\;;
//Definitions forMOclassVsDataContainerinterface VsDataContainer: Topconst string CLASS -\VsDataContainer\;l/Attribute Names
const string vsDataContainerld=\vsDataContainerId\;4
const string vsDataType -- \vsDataType\;const string vsData - \vsData\;const string vsDataFormatVersion = \vsDataFormatVersion\;3;
//Definitions for MO class SignallingPointinterface SignallingPoint: Topconst string CLASS \SignallingPoint\;l AttributeNames
const string signallingPointId -\signallingPointld\;const string signallingInfo =\signallingInfo\;const string signallingPointType =\signallingPointType\;const string userLabel - \userLabel\;;
interface SignallingLinkSetTP: Topconst string CLASS -:\SignallingLinkSetTP\;Il Attribute Names
const string signallingLinkSetTPId - \signallingLinkSetTPId\const string adjacentSignallingInfo =\adjacentSignallingInfo\;const string userLabel -- \userLabel\;const string signallingLinkType -\signallingLinkType\;;
interface SignallingLinkTP: Topconst string CLASS-\SignallingLinkTP\;Il Attribute Names
const string signallingLinkTPId=\signallingLinkTPId\:const string userLabel -- \userLabel\;const string slc \sle\;
const string slsNormalList - \slsNormalList\const string slsCurrentList =\slsCurrentList\;const string linkStatus \linkStatus\;一标准查询下载网
建筑321-
YD/T2333.2-2011
YD/T2333.2-2011
const string bandwidth =\bandwidth\;3;
#endif
4.1.2GenericNRMProfile
//File\GenericNRMProfile.idl\I/The RP document version number is \Generic NRM V1.0\#ifndefGenericNRMProfile_idl#define GenericNRMProfile idl#include\GenericNRMSystem.idl\/**
* This module defines the attribute names and* correspondig attribute types for all defined* MO class. This module is used for reference.*/
module GenericNRMProfile
interface Top
readonly attribute string objectClass;readonly attribute string objectInstance;3;
interface IRPAgent :Top
readonly attribute GenericNRMSystem:ObjectidType iRPAgentIdreadonly attribute GenericNRMSystem:DN systemDN;// The following notifications may be sent from this MO,l/notifyObjectCreation
I/ notifyObjectDeletion
/ notifyAttributeValueChange//notifyAckStateChanged
// notifyChangedAlarm
//notifyClearedAlarm
//notifyNewAlarm
//notifyComments
//notifyAlarmListRebuilt
llnotifyPotentialFaultyAlarmListinterface GenericIRP : Top
readonly attribute string iRPId;3;
interface SubNetwork: Top
readonly attribute GenericNRMSystem::ObjectIdType subNetworkId;readonly attribute GenericNRMSystem:DNPrefixType dnPrefix;attribute wstring userLabel;readonly attribute GenericNRMSystem:MobileCountryCodeSetType setOfMcc;YD/T2333.2-2011
readonly attribute GenericNRMSystem:NetworkTypeType userDefinedNetworkType;Il Thefollowingnotificationsmaybe sent from thisMO,I/notifyObjectCreation
//notifyObjectDeletion
I/ notifyAttributeValueChange//notifyAckStateChanged
//notifyChangedAlarm
//notifyClearedAlarm
//notifyNewAlarm
//notifyComments
//notifyAlarmListRebuilt
//notifyPotentialFaultyAlarmList3;
interface MeContext: Top
readonly attribute GenericNRMSystem:ObjectIdType meContextId;readonly attribute GenericNRMSystem:DNPrefixType dnPrefix;// Thefollowing notificationsmaybe sent from this MO,//notifyObjectCreation
I/notifyObjectDeletion
// notifyAttributeValueChange3
建筑321---标准查询下载网
jz32l.net
YD/T2333.2-2011
interface ManagementNode : Topreadonly attribute GenericNRMSystem:ObjectidType managementNodeld;readonly attribute GenericNRMSystem:DNListType managedElements;attribute wstring userLabel;attribute GenericNRMSystem:UserDefinedStateType userDefinedState;readonly attribute string swVersion; /l software versionreadonly attribute wstring locationName;readonly attribute string vendorName;I/ The following notifications may be sent from this MO,//notifyObjectCreation
l/notifyObjectDeletion
//notifyAttributeValueChangeI/notifyAckStateChanged
//notifyChangedAlarm
// notifyClearedAlarm
I/ notifyNewAlarm
//notifyComments
//notifyAlarmListRebuilt
//notifyPotentialFaultyAlarmList;
interface ManagedElement : Topreadonly attribute GenericNRMSystem::ObjectIdType managedElementId;readonly attribute GenericNRMSystem:DNPrefixType dnPrefix;attribute wstring userLabel;readonly attribute string vendorName;readonly attribute wstring locationName;readonly attribute GenericNRMSystem:StringSet managedElementType;readonly attribute GenericNRMSystem:DN managedBy;attribute GenericNRMSystem:UserDefinedStateType userDefinedState;readonly attribute string swVersion; // software version//Thefollowing notifications maybe sent from this MO,//notifyObjectCreation
l/ notifyObjectDeletion
Il notifyAttributeValueChange// notifyAckStateChanged
// notifyChangedAlarm
// notifyClearedAlarm
//notifyNewAlarm
//notifyComments
//notifyAlarmListRebuilt
//notifyPotentialFaultyAlarmListinterfaceManagedFunction:Topattribute wstring userLabel;3;
interface VsDataContainer: Topreadonly attribute GenericNRMSystem:ObjectIdType vsDataContainerld;readonly attribute string vsDataType;attribute any vsData,
readonly attribute string vsDataFormatVersion;I/ThefollowingnotificationsmaybesentfromthisMo,Il notifyObjectCreation
l/notifyObjectDeletion
l/notifyAttributeValueChangeI/ notifyAckStateChanged
Il notifyChangedAlarm
//notifyClearedAlarm
//notifyNewAlarm
I/ notifyComments
l/notifyAlarmListRebuilt
l/notifyPotentialFaultyAlarmList3;
interface SignallingPoint : Topreadonly attribute GenericNRMSystem:ObjectIdType signallingPointId;readonly attribute GenericNRMSystem:SignallingInfoType signallingInfo;readonly attribute GenericNRMSystem:SignallingPointType signallingPointType;attribute wstring userLabel;//ThefollowingnotificationsmaybesentfromthisMo,//notifyObjectCreation
//notifyObjectDeletion
I/ notifyAttributeValueChangel/notifyAckStateChanged
//notifyChangedAlarm
建筑321---标准查询下载网
jz32l.net
YD/T.2333.2-2011
小提示:此标准内容仅展示完整标准里的部分截取内容,若需要完整标准请到上方自行免费下载完整标准文档。
